Metric Goniometers
Metric Goniometers
Quantity
Regular price
£250.00 GBP
Regular price
Sale price
£250.00 GBP
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

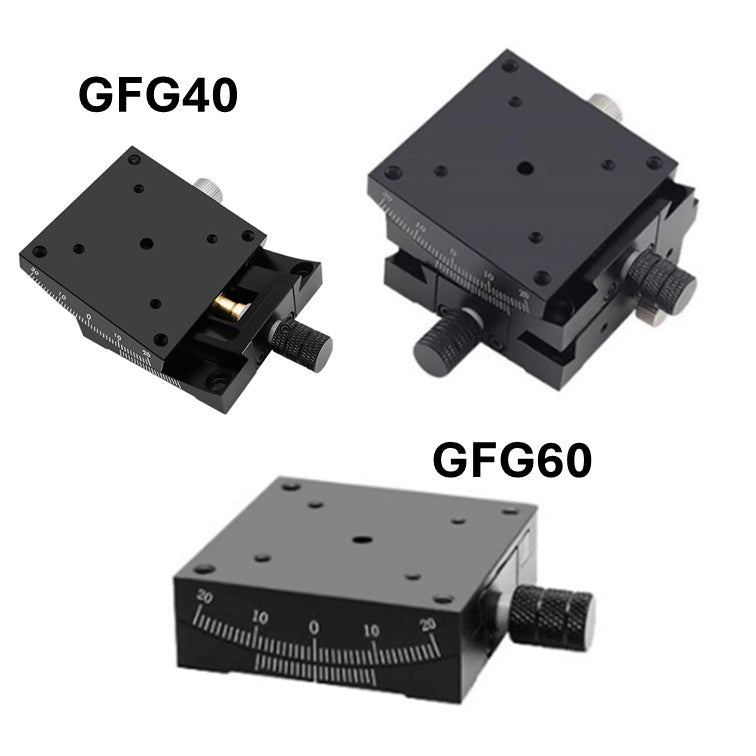

- Stackable for Single/Two-Axis Rotation
- Options of rotation center
- Durable Brass Construction
- Dovetail Design with Vernier Scale
- Compatible with other translation and rotaory stages
Product Parameters

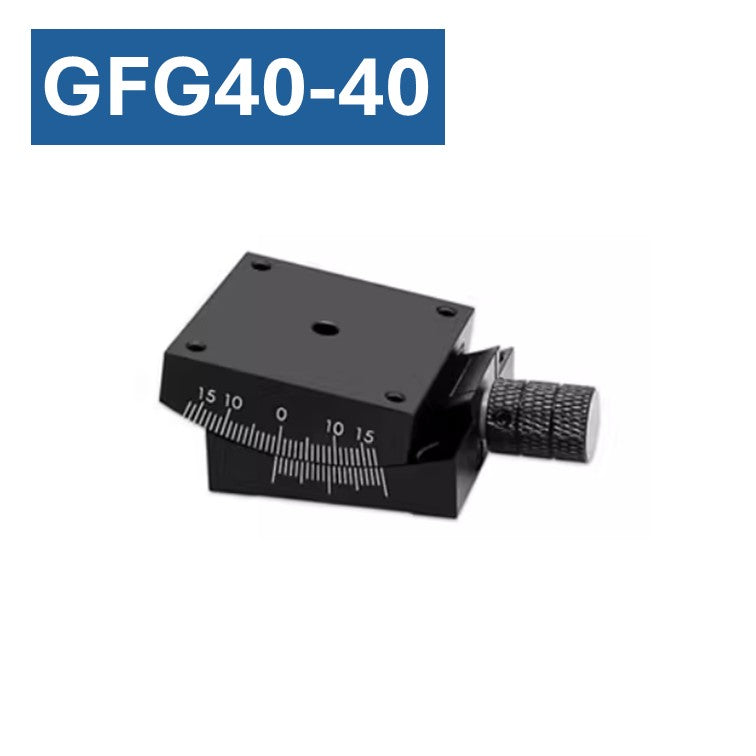

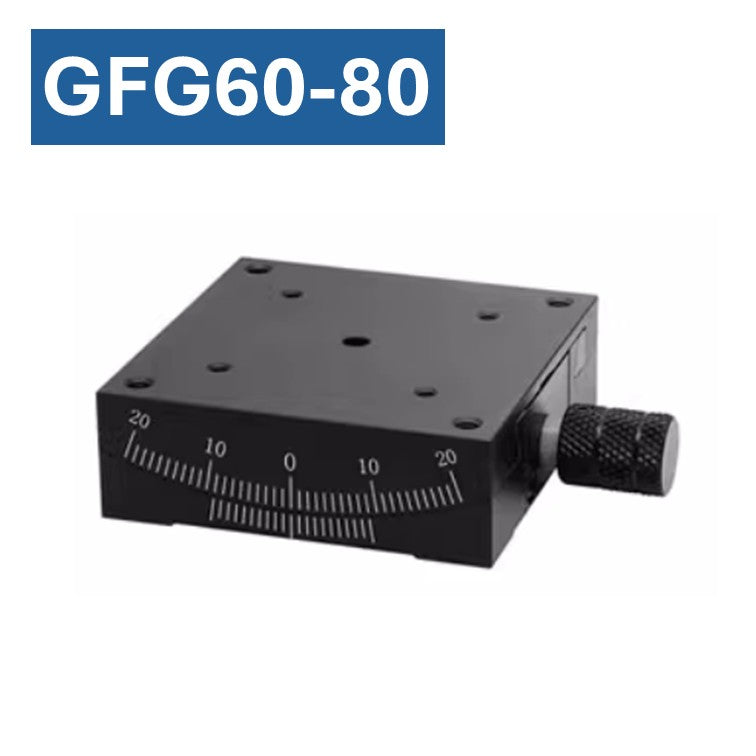

| GFG40-40 | GFG40-60 | GFG60-60 | GFG60-80 | |
| Surface area | 40mm * 40mm | 40mm * 40mm | 60mm * 60mm | 60mm * 60mm |
| Rotation Center from Surface | 40 mm | 60 mm | 60 mm | 80 mm |
| Thickness | 20 mm | 20 mm | 20 mm | 20 mm |
| Angle Range | +/- 15 degree | +/- 15 degree | +/- 20 degree | +/- 20 degree |
| Load | 3 kg | 3 kg | 6 kg | 6 kg |
| Weight | 0.4 kg | 0.4 kg | 0.6 kg | 0.6 kg |
Installation Method
Dimension of GFG40, use GFG40-40 as an example:
Dimension of GFG60, GFG60-40 as anexample
